VCOLOR819 ''BLAST CHILLER'' CONTROLLER

Stok Kodu
VCOLOR819
Sensör adedi ve tipi
2/3 PTC/NTC
Sensör Dahil mi? Adedi?
HAYIR
Fiyat Sorunuz
Fiyatları Görmek için Giriş Yapınız.
The Vcolor 819/829 series is a range of stylish controllers for managing blast chillers.

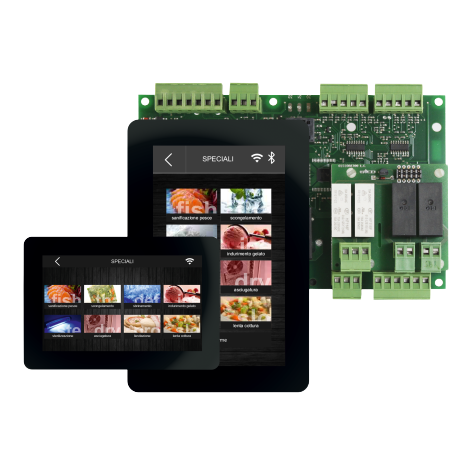

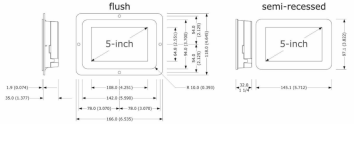

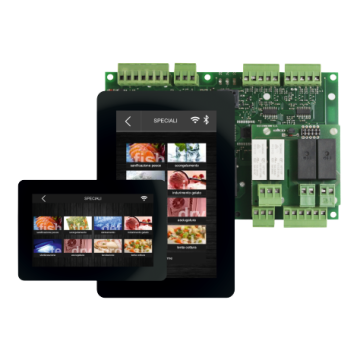

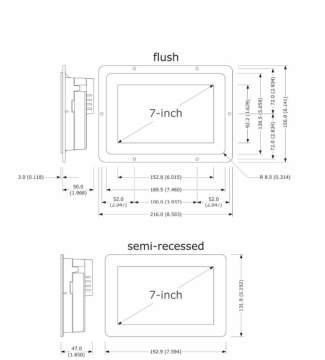

Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, in either vertical (819) or horizontal (829) format. The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.

These controllers can run blast chilling and blast freezing cycles, both temperature and time controlled, with hard/soft and intensity management functions, the latter requiring an external fan speed regulator. Before each temperature cycle, a test is run to check that the needle probe is correctly inserted (including multipoint probes).
An expansion module makes it possible to transform the controller into a multi-functional device for managing retarding-proofing and slow cooking cycles. It is also possible to team a slow cooking function with subsequent holding or blast chilling and conservation functions. manage the loads needed to run thawing cycles, needle probe heating and cabinet sterilisation.

Bluetooth BLE connectivity (built-in or enabled by the external EVlink BLE interface) and Wi-Fi connectivity (enabled by the external EVlink Wi-Fi interface) allow interaction with the unit from mobile devices through the EVconnect app for Android and iOS or from the Internet through the EPoCA cloud platform respectively. For more details, please visit the "Remote management and monitoring products/systems” section of our website.



Main features

* Management of blast chilling and freezing cycles, both
temperature and time controlled, with hard/soft function

* Management of 8 special cycles

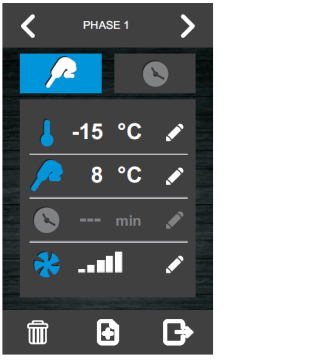

* Real time graphic display of the cycle in progress

* 5 or 7- inch capacitive touch-screen TFT graphic display, 65K colors and 800 x 480 pixel resolution

* IP65 frontal protection

* Stylish design, flush mounting and ease of use

* Needle probe insertion test

* TTL port for MODBUS serial communication

Please click here for downloading the relavant product brochure

Please click here for downloading the catalogue in Turkish

Please click here for downloading the user manual


Advantages & Main Features

Capacitive TFT touch-screen graphic display, 65K colours, 800 x 480 pixel resolution.
Available with user interface in either vertical or horizontal format
Option to transform the controller into a multi-functional device for managing retarding-proofing and slow cooking cycles
Interaction with the unit from the Internet through the EPoCA cloud platform
Management of blast chilling and freezing cycles, both temperature and time controlled, with hard/soft and intensity management functions
Management of 4 special cycles
Runs a test to check that the needle probe is correctly inserted (including multipoint probes)

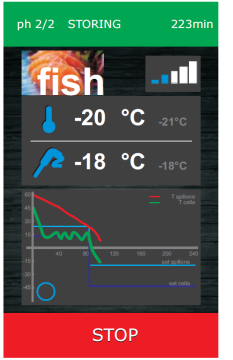

Real-time graphic display for blast chilling/freezing cycle in progress
User interface with IP65 protection

Technical Features

Controllers with 5 or 7-inch graphic display, in vertical or horizontal format

5" 7"
EVCMC819P9E EVCMC829P9E EVCLC819P9E EVCLC829P9E EVC20P52N9XXX10
USER INTERFACE ORIENTATION
Vertical
Horizontal
POWER SUPPLY
Control module 115... 230 VAC 115... 230 VAC 115... 230 VAC 115... 230 VAC
User interface (powered by the control module)
User interface (with separate power supply)     12 VAC 12 VAC
Additional module         115... 230 VAC
ANALOGUE INPUTS
Cabinet probe (PTC/NTC)
Needle probe - sensor 1 (PTC/NTC)
Needle probe - sensor 2 (PTC/NTC)
Needle probe - sensor 3 (PTC/NTC)
Evaporator probe (PTC/NTC)
Condenser probe (PTC/NTC)
DIGITAL INPUTS
Door switch
Compressor thermal switch
Low pressure switch
High pressure switch
ANALOGUE OUTPUTS
PWM, for speed regulators (evaporator fan)
DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)
Compressor 30 A 30 A 30 A 30 A
Defrost 8 A 8 A 8 A 8 A
Evaporator fans 8 A 8 A 8 A 8 A
Condenser fans 8 A 8 A 8 A 8 A
Door heater 8 A 8 A 8 A 8 A
Thawing heater 16 A 16 A 16 A 16 A
Alarm (configurable) 16 A 16 A 16 A 16 A
Pump down valve (configurable) 8 A 8 A 8 A 8 A
Needle probe heater (configurable) 8 A 8 A 8 A 8 A
Cabinet heater         30 A
Steam generator         16 A
Steam injection         8 A
COMMUNICATIONS PORTS
MODBUS RS-485
USB
OTHER FEATURES
Clock
Alarm buzzer
Management of blast chilling and blast freezing cycles, both temperature and time controlled
Management of blast chilling/freezing intensity with fan speed external regulator
Management of multipoint or multineedle probes
Management of special cycles (fish sanitation, thawing and ice cream hardening)
Management of retarding-proofing and slow cooking special cycles
Recording HACCP data and graphics processing in real time
Ready-to-use OEM recipes and storage of user recipes
Management via the EPoCA cloud platform

Notes
(1) Configurable as alarm or needle probe heater.
(2) Configurable as pump down valve or alarm.
(3) Configurable as cabinet light, UV lamp, needle probe heater or alarm.
