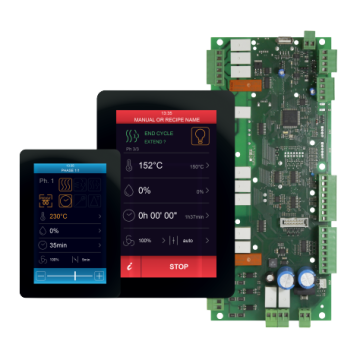

VCOLOR368 GASTRONOMİ FIRINI KONTROL CIHAZI

Stok Kodu
VCOLOR368
Sensör Tipi
FECONST
Sensör Dahil mi? Adedi?
HAYIR 1 / 2
Fiyat Sorunuz
Fiyatları Görmek için Giriş Yapınız.

Gastronomi fırınları için fırın kontrol kartları

Vcolor 368 M L controllers manage all the most up-to-date functions of electric combination ovens for gastronomy and pastry-making. Additional optional modules also make it possible to control ovens with an external boiler and gas burners.
Their innovative programmable platform enables the OEM, completely independently and without the use of additional software or hardware, to personalise the user interface graphics to an advanced degree, to set up the recipe book with high quality photographs and to add new machine interface languages.
Upon request, the controllers can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform, with the option of starting/stopping working cycles.
Available in a split 5 or 7-inch version with a capacitive colour TFT touch-screen graphic display, the user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.

For more details, please visit the "Remote management and monitoring products/systems” section of our website.



Avantajlar ve ana özellikler

Dedicated platform to personalise graphics, languages and recipes.
Interaction with the unit from the Internet through the EPoCA cloud platform
Steam generation in direct mode or through the use of an external boiler module.
Management of gas ovens using an external burners module.
Washing management with both liquid detergent and tab.
Capacitive TFT touch-screen graphic display, 65K colours, 800 x 480 pixel resolution.
Flush fit installation
5 or 7-inch format.

Technical Features



* Graphical skin, languages and recipes can be fully customized via USB port

* "À la carte” menu management

* Steam generation in direct mode or through the use of an external boiler module

* Washing management with both liquid detergent and tab

* Management of gas ovens using an external burners module

* 5” or 7” capacitive TFT touch-screen graphic display in glass

* Flush-fit installation Installazione a filolegant design, touch-screen, flush mounting and ease of use.

* Management of the ventilation in both "on-off” and modulating mode, with fan reversal.

* Full steam management (generation, injection and extraction), both in automatic and manual mode.



ÜRÜN BROŞÜRÜ DOSYASINI İNDİRMEK İÇİN BURAYA TIKLAYINIZ.

ÜRÜN KATALOĞUNU İNDİRMEK İÇİN LÜTFEN BURAYA TIKLAYINIZ

ÜRÜNE AİT KULLANIM KILAVUZUNU İNDİRMEK İÇİN LÜTFEN BURAYA TIKLAYINIZ

Avantajlar ve ana özellikler

Dedicated platform to personalise graphics, languages and recipes.
Interaction with the unit from the Internet through the EPoCA cloud platform
Steam generation in direct mode or through the use of an external boiler module.
Management of gas ovens using an external burners module.
Washing management with both liquid detergent and tab.
Capacitive TFT touch-screen graphic display, 65K colours, 800 x 480 pixel resolution.
Flush fit installation
5 or 7-inch format.

Technical Features

Controllers for combination ovens for gastronomy and pastry-making, with 5 or 7-inch colour TFT touch-screen graphic display, in split version

Vcolor 368 M
(5")
Vcolor 368 L
(7")
EVCMC36DJ2E EVCMC36DC2E EVCLC36DJ2E EVCLC36DC2E
Power supply
12 VAC
Analog inputs
chamber probe (J/K)
needle probe (J/K)
fume probe (J/K)
boiler probe (J/K)
chamber probe (2 wires Pt 100)
sonda spillone (Pt100 2 fili)
fume probe (2 wires Pt 100)
boiler probe (Pt 100 2 wires)
Digital inputs (for NA/NC contact)
door switch
fan thermal switch (230 VAC)
thermal switch (230 VAC)
electrical absorption (230 VAC)
boiler water minimum level
boiler water maximum level
Analog outputs
0-10 V (fan)
Digital outputs (electromechanical relays; res. A @ 250 VAC)
temperature regulation 1 A 1 A 1 A 1 A
direct steam injection 1 A 1 A 1 A 1 A
air vent 1 A 1 A 1 A 1 A
chamber light 1 A 1 A 1 A 1 A
technical room fan 1 A 1 A 1 A 1 A
suction hood 1 A 1 A 1 A 1 A
7 additional configurable outputs 1 A 1 A 1 A 1 A
Communication ports
MODBUS RS-485
USB
Other features
real time clock
alarm buzzer
management via the EPoCA cloud platform using the Wi-Fi (EVlink Wi-Fi) interface
