VCOLOR318 DECK FIRINI KONTROL CIHAZI
EVCO
VCOLOR318

VCOLOR318 DECK FIRINI KONTROL CIHAZI

Kategori
Fırın Kontrol Kartları
Stok Kodu
VCOLOR318
Sensör Tipi
FECONST
Sensör Dahil mi? Adedi?
HAYIR 1 / 2
Fiyat Sorunuz
LÜTFEN FİYAT VE İNDİRİM ORANLARIMIZ İÇİN ÜYELİK EKRANINA GİDİNİZ VEYA İLGİLİ SATIŞ TEMSİLCİMİZ İLE TEMASA GEÇİNİZ
EGE BÖLGESİ, İSTANBUL AVRUPA YAKASI VE TRAKYA
MUSTAFA YAVAŞ - 0534 032 38 12
mustafa@atilimicdis.com
MARMARA BÖLGESİ (İSTANBUL VE TRAKYA HARİÇ) VE İSTANBUL ANADOLU YAKASI
İSMAİL ŞAHİN - 0535 365 57 42
ismail@atilimicdis.com
İÇ ANADOLU BÖLGESİ, MUĞLA, ANTALYA, BURDUR VE ISPARTA
ANTONİ MELKONYAN - 0543 967 25 62
antoni@atilimicdis.com
DOĞU ANADOLU VE GÜNEYDOĞU ANADOLU BÖLGELERİ, AKDENİZ BÖLGESİ (ANTALYA HARİÇ)
İSMAİL ŞAHİN - 0535 365 57 42
ismail@atilimicdis.com
KARADENİZ BÖLGESİ
AGOP BAL - 0542 342 15 10
info@atilimicdis.com
İHRACAT İŞLEMLERİ
ALİ AKYÜZ
ali@atillimicdis.com
YURTİÇİ SATIŞ DESTEK
FAİK ÇIKLAKARSLI
satis@atilimicdis.com
FİYATLARI ONLİNE OLARAK GÖRMEK İÇİN GİRİŞ YAPINIZ.
WHATSAPP HATTIMIZA ULASMAK İÇİN LÜTFEN TIKLAYINIZ.
MAHMUT ŞEVKETPAŞA MAH. ŞAHİNKAYA SOK. NO:25/5 34374 ŞİŞLİ /İSTANBUL
TEL: +90 212 231 05 01 (PBX)
FAX: +90 212 248 01 81
Fiyatları Görmek için Giriş Yapınız.
Ürün Bilgisi
DÖKÜMAN VE VERİLER
Ürün Bilgisi

Pizza ve ekmek fırınları için taştabanlı fırın kontrol kartları

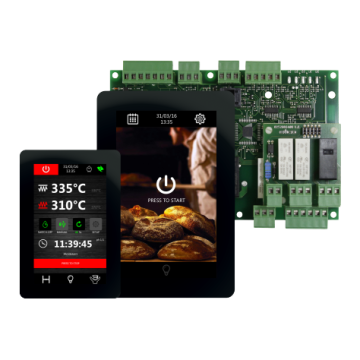

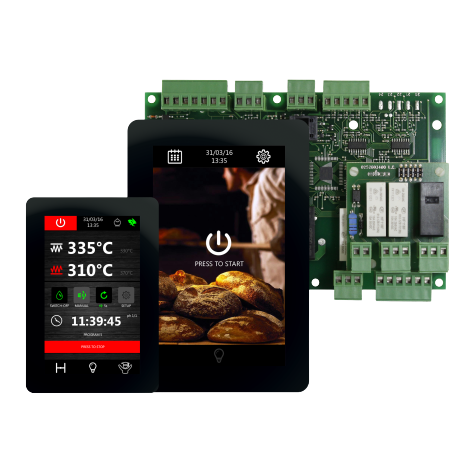

Vcolor 318/328 is a range of controllers with elegant design for the management of different typologies of "top-floor" electric ovens.

Available in split version, the user interface consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic display in glass, 65K colours, 800 x 480 pixel resolution and IP65 protection for easy cleaning.

The user interface can be installed recessed from the front or flush with the panel, thus making it fit perfectly with the design of the unit.

These controllers are suitable for different types of electric ovens due to the independent management of the power and the temperature at the top and on the floor of the oven. The model Vcolor 318 manages top-floor heaters by electro-mechanical relays, while the model Vcolor 328 has 2 12VDC outputs for managing external SSRs.

They have the full steam management (generation, injection and venting), both in automatic and manual mode, the "programmed weekly switch on”, "cooking timer” and "programs” functions and energy saving strategies.

Upon request, the controllers can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform, with the option of starting/stopping working cycles.

For more details, please visit the "Remote management and monitoring products/systems” section of our website.



Avantajlar ve ana özellikler
Energy-saving function with interconnected controllers
Interaction with the unit from mobile devices through the EVconnect app or from the Internet through the EPoCA cloud platform
Recipes and languages can be personalised uploading a spreadsheet via USB port
Complete steam management (generation, injection and venting) in both automatic and manual mode
Independent regulation of the power or temperature of the top and floor heaters
Models for managing external SSRs
13 capacitive keys


* Independent regulation of the power or temperature of the
top and floor heaters

* Automatic or manual steam management (generation,
injection and extraction)

* Models with "Programmed weekly switch on”, "cooking timer”
and "programs” function

* 5” or 7” capacitive TFT touch-screen graphic display in glass

* Flush-fit installation

* USB communication port for common USB flash drive

* Models with management of external SSRs

DÖKÜMAN VE VERİLER

ÜRÜN BROŞÜRÜ VE ÖRNEK UYGULAMALAR DOSYASINI İNDİRMEK İÇİN BURAYA TIKLAYINIZ.

ÜRÜN KATALOĞUNU İNDİRMEK İÇİN LÜTFEN BURAYA TIKLAYINIZ

ÜRÜNE AİT KULLANIM KILAVUZUNU İNDİRMEK İÇİN LÜTFEN BURAYA TIKLAYINIZ


Advantages & Main Features

Capacitive TFT touch-screen graphic display, 65K colours, 800 x 480 pixel resolution.
Interaction with the unit from the Internet through the EPoCA cloud platform
Elegant design, touch-screen, flush mounting and ease of use.
Aesthetic fit with the unit.
Models with
USB communication port.
Independent adjustment of power and temperature of top and floor heaters.
Full steam management (generation, injection and extraction), both in automatic and manual mode.

Technical Features

Controllers with 5-inch graphic display

Vcolor 318M Vcolor 328M
EVCMC318J9E EVCMC328J9E
Power supply
control module 115...230 115...230
user interface (powered by the control module) • •
Analog inputs
top probe (J/K) • •
floor probe (J/K) • •
steam probe (J/K) • •
Digital inputs (for NA/NC contact)
thermal switch • •
door switch • •
multipurpose 1 • •
multipurpose 2 • •
Digital outputs (electromechanical relays; res. A @ 250 VAC)
top 8 A
floor 8 A
steam injection 8 A 8 A
air vent 8 A 8 A
steam generator 8 A 8 A
room light 16 A 16 A
suction hood 16 A 16 A
load 8 (configurable) 8 A 8 A
Digital outputs (command for solid state relays; 12 VDC, 15 mA max)
top   •
floor   •
Communication ports
MODBUS RS-485 • •
USB • •
Other features
"cooking timer” function • •
"quick heating” function • •
real time clock • •
alarm buzzer • •
independent management of the power supplied to the top and the floor • •
independent management of the top and floor temperature • •
"Weekly programmed switch on” function • •
"programs” function • •
"energy saving” function • •
management via the EPoCA cloud platform using the Wi-Fi (EVlink Wi-Fi) interface • •

Notes
None.

Available options
For other models please contact the EVCO sales network.

Controllers with 7-inch graphic display

Vcolor 318L Vcolor 328L
EVCLC318J9E EVCLC328J9E
Power supply
control module 115... 230 115... 230
user interface (with separate power supply) 12 VAC 12 VAC
Analog inputs
top probe (J/K) • •
floor probe (J/K) • •
steam probe (J/K) • •
Digital inputs (for NA/NC contact)
thermal switch • •
door switch • •
multipurpose 1 • •
multipurpose 2 • •
Digital outputs (electromechanical relays; res. A @ 250 VAC)
top 8 A
floor 8 A
steam injection 8 A 8 A
air vent 8 A 8 A
steam generator 8 A 8 A
room light 16 A 16 A
suction hood 16 A 16 A
load 8 (configurable) 8 A 8 A
Digital outputs (command for solid state relays; 12 VDC, 15 mA max)
top   •
floor   •
Communication ports
MODBUS RS-485 • •
USB • •
Other features
"cooking timer” function • •
"quick heating” function • •
real time clock • •
alarm buzzer • •
independent management of the power supplied to the top and the floor • •
independent management of the top and floor temperature • •
"Weekly programmed switch on” function • •
"programs” function • •
"energy saving” function • •
management via the EPoCA cloud platform using the Wi-Fi (EVlink Wi-Fi) interface • •

Notes
None.
