EVJ805 ''BLAST CHILLER'' CONTROLLER

Kategori

Blast chiller Kontrol kartları

Stok Kodu

EVJ805

Sensör adedi ve tipi

2/3 PTC/NTC

Sensör Dahil mi? Adedi?

HAYIR

Ürün Bilgisi

DETAILS AND DOCUMENTS

Ürün Bilgisi

Controllers in the EVJ 800 range are capable of performing blast chilling and blast freezing cycles in an intuitive way, both temperature and time controlled, with hard/soft function. This versatile product provides users with a range of special cycles such as pre-cooling, fish sanitation and ice cream hardening. The outputs are highly configurable thus making it possible to manage the loads needed to run thawing cycles, needle probe heating and cabinet sterilisation.

Bluetooth BLE connectivity (built-in or enabled by the external EVlink BLE interface) and Wi-Fi connectivity (enabled by the external EVlink Wi-Fi interface) allow interaction with the unit from mobile devices through the EVconnect app for Android and iOS or from the Internet through the EPoCA cloud platform respectively. For more details, please visit the "Remote management and monitoring products/systems” section of our website.

https://www.atilimonline.com/urun/epoca-evco-uzaktan-goruntuleme-ve-takip-sistemi

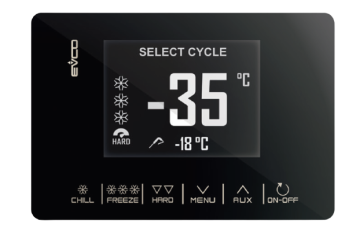

The controllers are available in the compact version or in the split version. The user interface has a 2.8 inch colour graphic display, capacitive keys and an IP65 front with a continuous surface. The controller can be fitted to the panel in the conventional way, built into the front, or concealed under the panel (if made of glass or methacrylate), ensuring high cleaning and hygiene standards.

Main features

* Management of blast chilling and freezing cycles, both

temperature and time controlled, with hard/soft function

* Management of 8 special cycles

* 2.8” LCD colour graphic display

* IP65 frontal protection

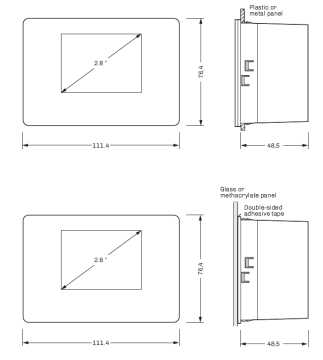

* 2 methods for panel installation: recessed or concealed

under the panel (if made of glass or methacrylate) with

customizable keys on the panel surface

* Needle probe insertion test

* TTL port for MODBUS serial communication

DETAILS AND DOCUMENTS

Please click here for downloading the relevant product brochure

Please click here for downloading the latest HORECA division catalogue

Please click here for downloading the user manual

Advantages & Main Features

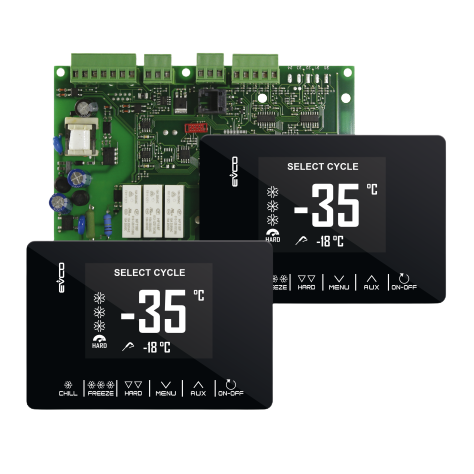

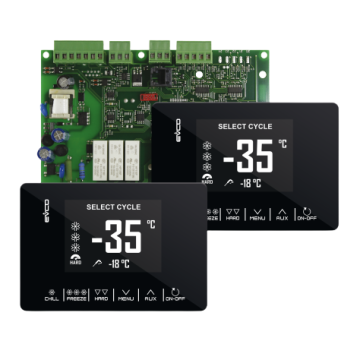

Available in the compact and split version

Interaction with the unit from mobile devices through the EVconnect app or from the Internet through the EPoCA cloud platform

Management of blast chilling and freezing cycles, both temperature and time controlled, with hard/soft

Storage of user recipes (EVJS825P9, EVJ825P9PX3)

Electro-mechanical relay for high-power compressors

2 panel installation methods: recessed or concealed under the panel (if made of glass or methacrylate) with personalised keys on the panel surface

Technical Features

Controllers for blast chillers

EVJ805P9VX3 EVJ815P9VX3XXV EVJ825P9PX3 EVJS815P9 EVJS825P9

VERSION

Compact • • •

Split • •

POWER SUPPLY

115... 230 VAC • • • • •

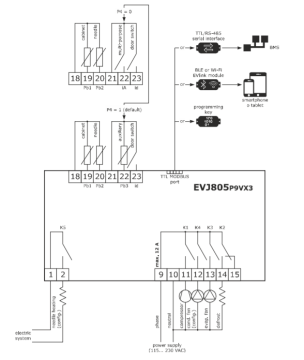

ANALOGUE INPUTS

Cabinet probe (PTC/NTC) • • • • •

Needle probe (PTC/NTC) • • • • •

Auxiliary probe (PTC/NTC) • •

DIGITAL INPUTS

Door switch • • • • •

Multi-purpose • •

CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)

Auxiliary probe (PTC/NTC) or door switch/multi-purpose • • •

DIGITAL OUTPUTS (electro-mechanical relays; A res. @ 250 VAC)

Compressor 30 A 30 A 30 A 30 A 30 A

Defrost 8 A 8 A 8 A 8 A 8 A

Evaporator fans 8 A 8 A 8 A 8 A 8 A

Condenser fans (configurable) 5 A 5 A 5 A 8 A 8 A

Needle probe heater (configurable) 5 A 5 A 5 A 8 A 8 A

COMMUNICATIONS PORTS

MODBUS TTL • • • • •

OTHER STANDARD FEATURES

Management via app EVconnect with built-in BLE Bluetooth connectivity •

Clock • • • •

Alarm buzzer • • • • •

Management of blast chilling and blast freezing cycles, both temperature and time controlled • • • • •

Management of special cycles (fish sanitation, thawing and ice cream hardening) • • • • •

Ready-to-use OEM recipes • • • • •

Storage of user recipes • •

OPTIONAL FEATURES

Management via app EVconnect with BLE Bluetooth interface (EVlink BLE) • • • •

Management via the EPoCA cloud platform using the Wi-Fi (EVlink Wi-Fi) interface • • • •

Notes

None.

Available options

Plug-in screw terminal blocks (fixed-screw as standard).
