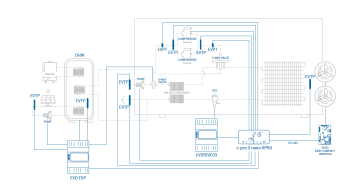

c-pro 3 HPRU is a series of fully configurable controllers for running reversible air-water and water-water single-circuit residential heat pumps with up to 3 compressors.
As standard features, the controllers include the management of the DHW tank circuit (with stratification and priorities) and of the solar panels circuit. Complete control of BLDC compressors is given by the management of the "envelope” function , while unipolar stepper electronic expansion valves can be driven thanks to a built-in driver.
Optional features include the management of bipolar stepper EEVs through an external driver module.

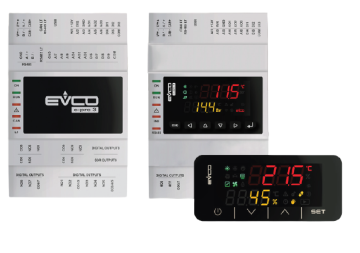

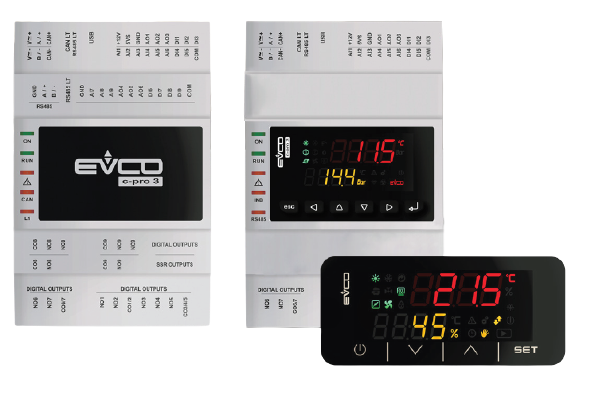

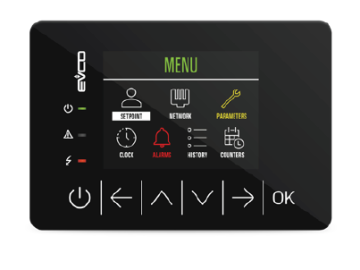

The solution is available in the following hardware formats: - c-pro 3 nano (74x32 mm) with built-in LED display, capacitivetouch keys, 25 I/Os, IP65 frontal potection and panel fitting; - c-pro 3 kilo (4 DIN modules) in blind version or with built-in LED user interface, up to 31 I/Os, built-in driver for unipolar EEVs and DIN rail installation; - c-pro 3 micro (4 DIN modules) in blind version or with built-in LED user interface, up to 33 I/Os and DIN rail installation. Both formats can be connected, according to your needs, to the stylish panel- or wall-mounted interface EPJgraph or to Vled 3, a reduced-depth interface for panel fitting.

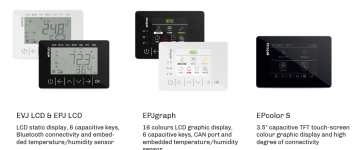

USER INTERFACES AVAILABLE ARE;

MAIN FEATURES

DETAILS AND DOCUMENTS

Please click here for downloading the relevant product brochure

Please click here for downloading the latest HVAC catalogue

Please click here for downloading the user manual

Advantages & Main Features

Communication with a possible bipolar stepper electronic expansion valves driver (EVDRIVE03)

Controllers with built-in unipolar stepper electronic expansion valves driver

Technical Features

Controllers for reversible single-circuit heat pumps with up to 3 compressors

c-pro 3 nano HPRU c-pro 3 micro HPRU c-pro 3 kilo HPRU

EPN2LXP1CP EPU2BXP1CP EPU2LXP1CP EPK3BEV1CP EPK3LEV1CP

VERSION

In a plastic housing, blind • •

In a plastic housing, with built-in user interface • • •

FORMAT

74 x 32 mm •

4 DIN modules • • • •

DISPLAY

2-line LED display, 6 keys • •

2-line LED display, 4 capacitive touch keys •

INSTALLATION

Panel-mounted •

On a DIN rail • • • •

CONNECTIONS

JST connectors • •

Micro-Fit connectors • • •

Removable spring terminal blocks • • • •

Plug-in screw terminal blocks • • • • •

POWER SUPPLY

12 VAC • • •

24 VAC/DC • •

CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)

Analogue input (PTC/NTC/Pt 1000) or digital input (dry contact) 5 3 3 3 3

Analogue input (NTC/0-5 V ratiometric/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) 4

Analogue input (PTC/NTC/Pt 1000/0-5 V/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) 6 6 6 6

DIGITAL INPUTS (configurable)

Dry contact 3

24 VAC/DC 7 7 7 7

Dry contact for pulse trains up to 2 KHz 2

24 VAC/DC for pulse trains up to 2 KHz 2 2 2 2

ANALOGUE OUTPUTS (configurable)

0-10 V 2 2 2 2

0-10 V/PWM 2 2 2 2

0-10 V/PWM/phase cut 2

0-20 mA/4-20 mA/0-10 V 2 2 2 2 2

DIGITAL OUTPUTS electro-mechanical relays; A res. @ 250 VAC (configurable)

3 A SPST 7 7 7 7 7

3 A SPDT 2 2

COMMUNICATIONS PORTS

INTRABUS •

MODBUS RS-485 slave • • • • •

RS-485 MODBUS master • • • •

CAN • • • • •

USB • • • • •

OTHER STANDARD FEATURES

Clock • • • • •

Alarm buzzer •

Built-in driver for unipolar stepper-type electronic expansion valves • •

Notes

None.

Available options

-	compatible user interfaces: EPJgraph, Vled 3 INTRABUS (nano), Vled 3 CAN (kilo)
-	compatible EEV drivers: EVDRIVE03 (nano and micro)
-	compatible I/O expansions: EVD EXP (nano).
