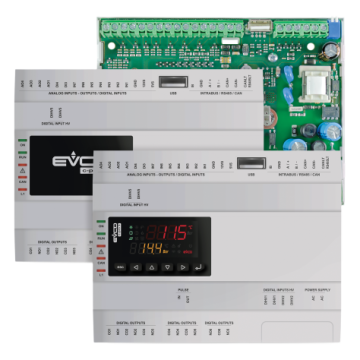

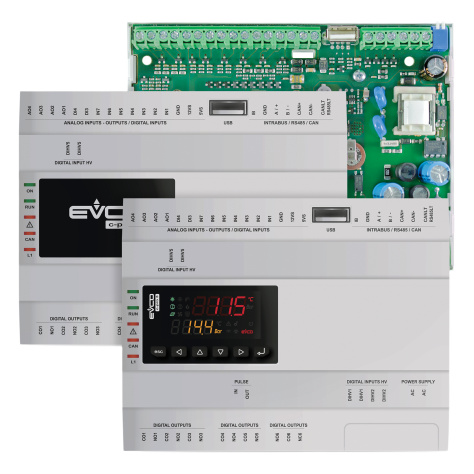

C-PRO 3OEM HRV CONTROLLER

EVCO

C-PRO 3OEM HRV

C-PRO 3OEM HRV CONTROLLER

Kategori

Küçük Klima Santralleri İçin , Isı Geri Kazanım Cihazları İçin

Stok Kodu

C-PRO 3OEM HRV

Ürün Bilgisi

DETAILS AND DOCUMENTS

Ürün Bilgisi

MAIN HARDWARE DETAILS

8 DIN module, rail mounting 115-230 V controller

6 Digital outputs (configurable 3A),11 Inputs (4 digital inputs (configurable)+7 digital/analog inputs (configurable) ), 4 Analogue outputs (0-10 V/PWM), INTRABUS, CANBUS, MODBUS RS-485 and USB ports

USER INTERFACES AVAILABLE ARE;

The controllers c-pro 3 OEM HRV have fully configurable inputs and outputs for an advanced management of heat recovery ventilation units for air renewal and handling in residential applications, in compliance with the most rigorous standards for air-quality and building energy certification.
Independent management of supply and extraction fans (both EC modulating and multispeed types) makes optimum flow distribution possible in all situations. Room comfort is achieved by the ability to manage different heat recovery exchangers (with free-cooling and free-heating functions) and sources of heating/cooling.
Available in an 8 DIN format, in the open board version or with plastic enclosure, the controllers are compatible with a wide range of state-of-the-art user interfaces for panel or wall installation. Some of them have built-in temperature and humidity sensors.

MAIN FEATURES

DETAILS AND DOCUMENTS

Please click here for downloading the relevant product brochure

Please click here for downloading the latest HVAC catalogue

Please click here for downloading the user manual

Advantages & Main Features

Management of 2 fans (EC or 3-speed) with independent supply/return fan control

Management of 5 levels of pressure filters per flow

Management of cross-flow, rotary or thermodynamic heat exchangers

Management of dampers and of free cooling/free heating

Management of 4 coils with 5 adjustment steps

3-point adjustment for all modulating loads

Management of 2 compressors (ON-OFF and BLDC)

Technical Features

Controllers for heat recovery ventilation units with extended functions

EPB9ORX1AH EPB9ORE1AH EPB9BRE1AH EPB9LRE1AH

VERSION

Blind, open frame • •

In a plastic housing, blind •

In a plastic housing, with built-in user interface •

FORMAT

8 DIN modules • • • •

DISPLAY

2-line LED display, 6 keys •

INSTALLATION

On a DIN rail • • • •

CONNECTIONS

Fixed screw terminal blocks •

Plug-in screw terminal blocks • • •

POWER SUPPLY

115... 230 VAC • • • •

CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)

Analogue input (PTC/NTC/Pt 1000) or digital input (dry contact) 4 4 4 4

Analogue input (NTC/0-5 V ratiometric/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) 3 3 3 3

DIGITAL INPUTS (configurable)

Dry contact for pulse trains up to 2 KHz 2 2 2 2

High voltage 2 2 2 2

ANALOGUE OUTPUTS (configurable)

0-10 V/PWM 4 4 4 4

DIGITAL OUTPUTS electro-mechanical relays; A res. @ 250 VAC (configurable)

5 A SPST 4 4 4 4

8 A SPST 1 1 1 1

16 A SPDT 1 1 1 1

COMMUNICATIONS PORTS

INTRABUS • • • •

MODBUS RS-485 slave • • • •

CAN • • • •

USB • • • •

OTHER STANDARD FEATURES

Clock • • • •

Notes

None.

Available options

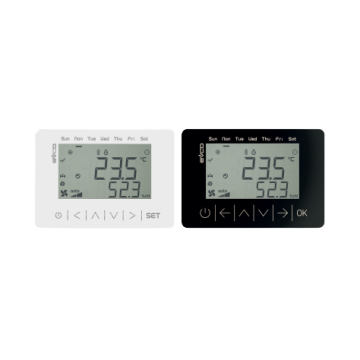

-	compatible user interfaces: EPcolor S, EPJgraph, EPJ LCD, EVJ LCD, Vgraph
-	compatible I/O expansions: EVD EXP.
