EVD934BM9MF
EVD934BM9MF PARAMETRIC CONTROLLER
Category
Stock Code
EVD934BM9MF
Check the Price
LÜTFEN FİYAT VE İNDİRİM ORANLARIMIZ İÇİN ÜYELİK EKRANINA GİDİNİZ VEYA İLGİLİ SATIŞ TEMSİLCİMİZ İLE TEMASA GEÇİNİZ
EGE BÖLGESİ, İSTANBUL AVRUPA YAKASI VE TRAKYA
MUSTAFA YAVAŞ - 0534 032 38 12
mustafa@atilimicdis.com
mustafa@atilimicdis.com
KARADENİZ BÖLGESİ
AGOP BAL - 0542 342 15 10
info@atilimicdis.com
info@atilimicdis.com
İHRACAT İŞLEMLERİ
ALİ AKYÜZ
ali@atillimicdis.com
ali@atillimicdis.com
YURTİÇİ SATIŞ DESTEK
FAİK ÇIKLAKARSLI
satis@atilimicdis.com
satis@atilimicdis.com
FİYATLARI ONLİNE OLARAK GÖRMEK İÇİN GİRİŞ YAPINIZ.
WHATSAPP HATTIMIZA ULASMAK İÇİN LÜTFEN TIKLAYINIZ.
MAHMUT ŞEVKETPAŞA MAH. ŞAHİNKAYA SOK. NO:25/5 34374 ŞİŞLİ /İSTANBUL
TEL: +90 212 231 05 01 (PBX)
FAX: +90 212 248 01 81
Please Log in to check the price
MAIN HARDWARE DETAILS
4 DIN module, rail mounting 115-230 V controller
4 Digital outputs (configurable 3A),10 Inputs (3 digital inputs (configurable)+7 digital/analog inputs (configurable) ), 2 Analogue outputs (0-10 V/PWM/phase cut), 2 Triacs (200 mA + 2 A)
USER INTERFACES AVAILABLE ARE;
EV HRV is a series of controllers with ready-to-use application software for energy-efficient heat recovery ventilation units for air renewal and handling.
Independent management of the supply and extraction fans, both EC modulating and multi-speed types, makes possible optimum flow distribution in all situations. Environmental comfort, in terms of temperature and humidity, is achieved by the ability to manage different heat recovery systems, with free-cooling and free-heating functions, and sources of heating/cooling.

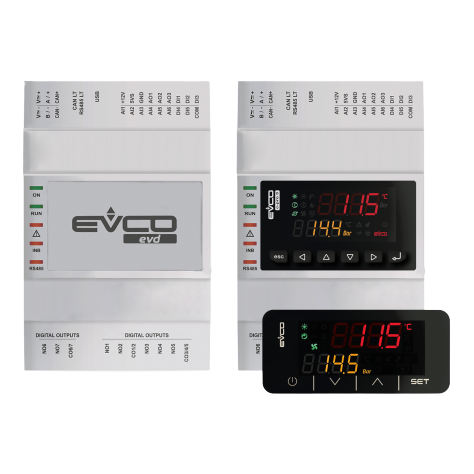

The solution is available in the following hardware formats: - EV3 (74x32mm) with built-in LED display, capacitive touch keys, IP65 front protection, 12 VAC power supply and panel fitting; - EVD (4 DIN modules) in blind version or with built-in LED user interface, 115... 230 VAC power supply and DIN rail installation. Both formats can be connected, according to your needs, to the stylish panel- or wall-mounted interface EVJ LCD or to Vled 3, a reduced-depth interface for panel fitting.
With 6 capacitive keys and an optional Bluetooth BLE communication module, EVJ LCD provides end-users with easy, intuitive control of the unit using the EVcontrol APP, for Android and iOS platforms, transforming your smartphone or tablet into a state-of-the-art remote control.
Upon request, the controller can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform.
Independent management of the supply and extraction fans, both EC modulating and multi-speed types, makes possible optimum flow distribution in all situations. Environmental comfort, in terms of temperature and humidity, is achieved by the ability to manage different heat recovery systems, with free-cooling and free-heating functions, and sources of heating/cooling.
The solution is available in the following hardware formats: - EV3 (74x32mm) with built-in LED display, capacitive touch keys, IP65 front protection, 12 VAC power supply and panel fitting; - EVD (4 DIN modules) in blind version or with built-in LED user interface, 115... 230 VAC power supply and DIN rail installation. Both formats can be connected, according to your needs, to the stylish panel- or wall-mounted interface EVJ LCD or to Vled 3, a reduced-depth interface for panel fitting.
With 6 capacitive keys and an optional Bluetooth BLE communication module, EVJ LCD provides end-users with easy, intuitive control of the unit using the EVcontrol APP, for Android and iOS platforms, transforming your smartphone or tablet into a state-of-the-art remote control.
Upon request, the controller can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform.
MAIN FEATURES
