EV3914
EV3914 PARAMETRIC CONTROLLER
Stock Code
EV3914
Check the Price
LÜTFEN FİYAT VE İNDİRİM ORANLARIMIZ İÇİN ÜYELİK EKRANINA GİDİNİZ VEYA İLGİLİ SATIŞ TEMSİLCİMİZ İLE TEMASA GEÇİNİZ
EGE BÖLGESİ, İSTANBUL AVRUPA YAKASI VE TRAKYA
MUSTAFA YAVAŞ - 0534 032 38 12
mustafa@atilimicdis.com
mustafa@atilimicdis.com
KARADENİZ BÖLGESİ
AGOP BAL - 0542 342 15 10
info@atilimicdis.com
info@atilimicdis.com
İHRACAT İŞLEMLERİ
ALİ AKYÜZ
ali@atillimicdis.com
ali@atillimicdis.com
YURTİÇİ SATIŞ DESTEK
FAİK ÇIKLAKARSLI
satis@atilimicdis.com
satis@atilimicdis.com
FİYATLARI ONLİNE OLARAK GÖRMEK İÇİN GİRİŞ YAPINIZ.
WHATSAPP HATTIMIZA ULASMAK İÇİN LÜTFEN TIKLAYINIZ.
MAHMUT ŞEVKETPAŞA MAH. ŞAHİNKAYA SOK. NO:25/5 34374 ŞİŞLİ /İSTANBUL
TEL: +90 212 231 05 01 (PBX)
FAX: +90 212 248 01 81
Please Log in to check the price
MAIN HARDWARE DETAILS
12 V controller with 74x32 mm dimensions.
4 Digital outputs (configurable 3A),10 Inputs (3 digital inputs (configurable)+7 digital/analog inputs (configurable) ), 2 Analogue outputs (0-10 V/PWM/phase cut)
USER INTERFACES AVAILABLE ARE;

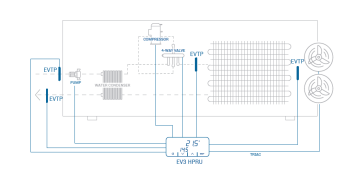

EV HPRU is a series controllers with ready-to-use application software for running reversible air-water and water-water singleor double-circuit residential heat pumps with up to 6 compressors.
These controllers are capable of running compressors and fans of both the on-off and modulating types. The models equipped with 2 Triac outputs can directly manage fan speed and external solid state relays.

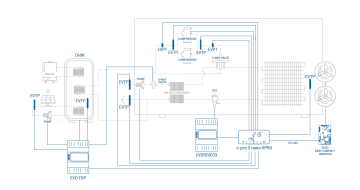

Inputs and outputs number can be further increased through an expansion module, allowing the management of the second circuit and that of a DHW tank and of solar panels.

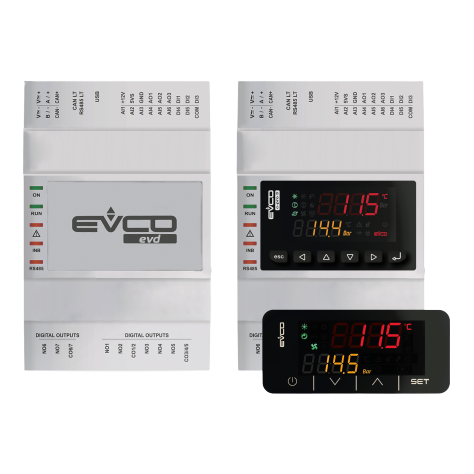

The solution is available in the following hardware formats: - EV3 (74x32mm) with built-in LED display, capacitive touch keys, IP65 front protection, 12 VAC power supply and panel fitting; - EVD (4 DIN modules) in blind version or with built-in LED user interface, 115... 230 VAC power supply and DIN rail installation. Both formats can be connected, according to your needs, to the stylish panel- or wall-mounted interface EVJ LCD or to Vled 3, a reduced-depth interface for panel fitting.
These controllers are capable of running compressors and fans of both the on-off and modulating types. The models equipped with 2 Triac outputs can directly manage fan speed and external solid state relays.
Inputs and outputs number can be further increased through an expansion module, allowing the management of the second circuit and that of a DHW tank and of solar panels.
The solution is available in the following hardware formats: - EV3 (74x32mm) with built-in LED display, capacitive touch keys, IP65 front protection, 12 VAC power supply and panel fitting; - EVD (4 DIN modules) in blind version or with built-in LED user interface, 115... 230 VAC power supply and DIN rail installation. Both formats can be connected, according to your needs, to the stylish panel- or wall-mounted interface EVJ LCD or to Vled 3, a reduced-depth interface for panel fitting.
MAIN FEATURES
