EPB9ORE1SQ
EPB9ORE1SQ CPRO3 OEM SEQUENCER
Category
Stock Code
EPB9ORE1SQ
Check the Price
LÜTFEN FİYAT VE İNDİRİM ORANLARIMIZ İÇİN ÜYELİK EKRANINA GİDİNİZ VEYA İLGİLİ SATIŞ TEMSİLCİMİZ İLE TEMASA GEÇİNİZ
EGE BÖLGESİ, İSTANBUL AVRUPA YAKASI VE TRAKYA
MUSTAFA YAVAŞ - 0534 032 38 12
mustafa@atilimicdis.com
mustafa@atilimicdis.com
KARADENİZ BÖLGESİ
AGOP BAL - 0542 342 15 10
info@atilimicdis.com
info@atilimicdis.com
İHRACAT İŞLEMLERİ
ALİ AKYÜZ
ali@atillimicdis.com
ali@atillimicdis.com
YURTİÇİ SATIŞ DESTEK
FAİK ÇIKLAKARSLI
satis@atilimicdis.com
satis@atilimicdis.com
FİYATLARI ONLİNE OLARAK GÖRMEK İÇİN GİRİŞ YAPINIZ.
WHATSAPP HATTIMIZA ULASMAK İÇİN LÜTFEN TIKLAYINIZ.
MAHMUT ŞEVKETPAŞA MAH. ŞAHİNKAYA SOK. NO:25/5 34374 ŞİŞLİ /İSTANBUL
TEL: +90 212 231 05 01 (PBX)
FAX: +90 212 248 01 81
Please Log in to check the price

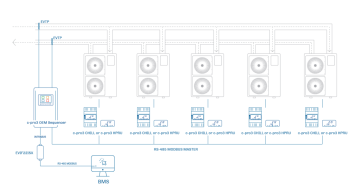

The c-pro 3 OEM Sequencer is a control solution making it possible to control in sequence up to 5 heat pumps or up to 5 chillers interconnected with RS-485 serial communications systems, provided that each unit is managed by an EVCO controller belonging to the c-pro 3 HPRU or c-pro 3 CHILL series.
The number of operating units and their power level is adjusted according to the cooling/heating requirements and it is also possible to set parameters for the number of units active at the same time.

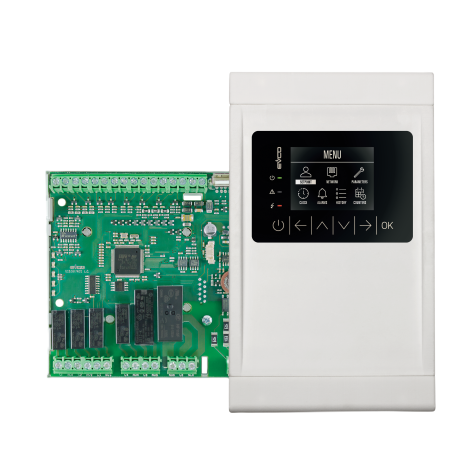

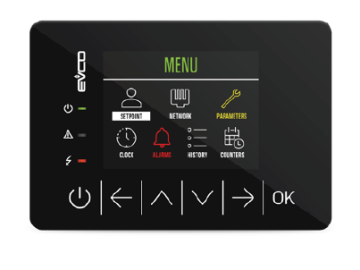

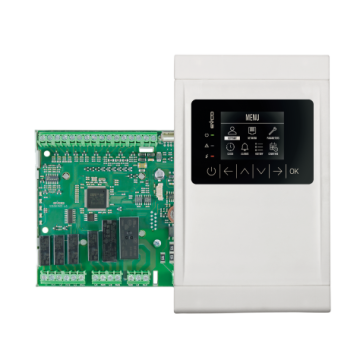

The sequencer is available in the open-board version matched with a user interface of a modern design with a colour LCD graphic display from which it is possible to manage all the principal functions of the equipment (switch on/off, alter operating mode, etc.) and view the main variables of each of the connected heat pumps.
Optionally, the solution can be housed in a fully IP65 compliant electric panel.
The number of operating units and their power level is adjusted according to the cooling/heating requirements and it is also possible to set parameters for the number of units active at the same time.
The sequencer is available in the open-board version matched with a user interface of a modern design with a colour LCD graphic display from which it is possible to manage all the principal functions of the equipment (switch on/off, alter operating mode, etc.) and view the main variables of each of the connected heat pumps.
Optionally, the solution can be housed in a fully IP65 compliant electric panel.
USER INTERFACES AVAILABLE ARE;
The c-pro 3 OEM Sequencer is a control solution making it possible to control in sequence up to 5 heat pumps or up to 5 chillers interconnected with RS-485 serial communications systems, provided that each unit is managed by an EVCO controller belonging to the c-pro 3 HPRU or c-pro 3 CHILL series.
The number of operating units and their power level is adjusted according to the cooling/heating requirements and it is also possible to set parameters for the number of units active at the same time.
The sequencer is available in the open-board version matched with a user interface of a modern design with a colour LCD graphic display from which it is possible to manage all the principal functions of the equipment (switch on/off, alter operating mode, etc.) and view the main variables of each of the connected heat pumps.
Optionally, the solution can be housed in a fully IP65 compliant electric panel.
The sequencer is available in the open-board version matched with a user interface of a modern design with a colour LCD graphic display from which it is possible to manage all the principal functions of the equipment (switch on/off, alter operating mode, etc.) and view the main variables of each of the connected heat pumps.
Optionally, the solution can be housed in a fully IP65 compliant electric panel.
MAIN FEATURES
