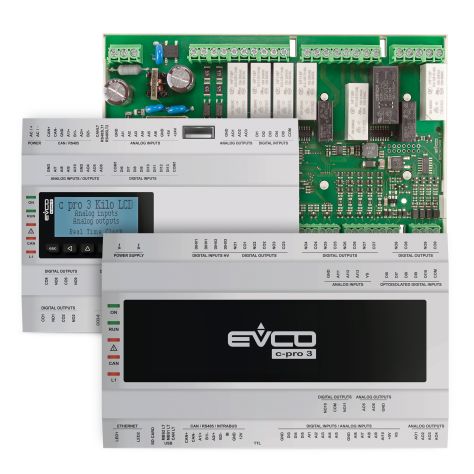

C-PRO 3 NODE KILO AHU

C-PRO 3 NODE KILO AHU

Stock Code
C-PRO 3 NODE KILO AHU
Check the Price
Please Log in to check the price
MAIN HARDWARE DETAILS

8 DIN module, rail mounting 24 V controller

11 Digital outputs (configurable 3A), 23 Inputs (13 digital inputs (configurable)10 digital/analog inputs (configurable) ),  6 Analogue outputs (0-10 V/PWM)INTRABUSCANBUS2X MODBUS RS-485, ETHERNET  and USB ports


USER INTERFACES AVAILABLE ARE;


    c-pro 3 AHU is a highly configurable controllers for the management of single or dual-flow (with heat recovery) air handling units operating with three coils and an additional pre-heating coil. The coils can be electrical, water or direct expansion.

    The controller is able to manage the return fan and the supply fan independently (up to 3 speeds or modulating according to the supply static pressure and according to the room air quality). Options include the management via serial port of the modulating fan (supply and return) by means of dedicated EVCO inverters or of Fan Walls with up to 16 EC fans for each flow.

    The controller can manage the external damper, the bypass damper and the mixing chamber damper, as well as the humidifier, both in "on-off” and modulating mode.
Upon request, the controller can be equipped with Wi-Fi connectivity so it can interact remotely with the unit through the EPoCA® cloud platform.

    Available in a 8 or 10 DIN-module format with up to 40 I/Os, the controller is compatible with a wide range of state-of-the-art user interfaces for panel or wall installation. Some of them have built-in temperature and humidity sensors.

MAIN FEATURES

- Interaction with the unit from the Internet through the EPoCA cloud platform

- Variety of communication ports (RS-485, CAN, USB and Ethernet) and supported communication protocols (BACNet and Web Server)

- Modulating fan management via serial port with EVCO inverters

- Management of 3 coils + 1 pre-heating coil

- Humidifier management

- Management of the external, bypass and mixing chamber dampers

- Equipped with up to 40 I/Os

- Management "Fan Walls" with 16 EC fans for each flow via MODBUS



Advantages & Main Features

Management of different types of units for large surface areas
Interaction with the unit from the Internet through the EPoCA cloud platform
Variety of communication ports (RS-485, CAN, USB and Ethernet) and supported communication protocols (BACNet and Web Server)
Modulating fan management via serial port with EVCO inverters
Management of 3 coils 1 pre-heating coil
Humidifier management
Management of the external, bypass and mixing chamber dampers
Equipped with up to 40 I/Os
Management via RS-485 MODBUS of Fan Walls with 16 EC fans for each flow



 Please click here for downloading the technical sheet of the family.



Please click here for downloading the user manual of the family.



Please click here for downloading the latest product catalogue

Technical Features

Controller for single or double flow air handling units for large surface areas

  c-pro 3 AHU c-pro 3 NODE giga AHU
  EPK4BHQ1AH EPK4DHQ1AH EPG9OHX1AH EPG9ORE1AH EPG9BHX1AH
VERSION
In a plastic housing, blind
In a plastic housing, with built-in user interface
Blind, open frame
FORMAT
8 DIN modules
10 DIN modules
DISPLAY
LCD graphic display. 6 keys
INSTALLATION
On a DIN rail
CONNECTIONS
Fixed screw terminal blocks
Plug-in screw terminal blocks
POWER SUPPLY
24 VAC/DC
115... 230 VAC
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Analogue input (PTC/NTC/Pt 1000) or digital input (dry contact) 4 4 5 5 5
Analogue input (PTC/NTC/Pt 1000/0-5 V/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) 6 6 5 5 5
DIGITAL INPUTS (configurable)
24 VAC/DC 11 11
24 VAC/DC for pulse trains up to 2 KHz 2 2 3 3 3
High voltage     2 2 2
ANALOGUE OUTPUTS (configurable)
0-10 V 2 2
0-10 V/PWM 2 2 4 4 4
0-20 mA/4-20 mA/0-10 V 2 2
DIGITAL OUTPUTS electro-mechanical relays; A res. @ 250 VAC (configurable)
2 A SPST     2 2 2
3 A SPST 9 9 5 5 5
3 A SPDT 2 2 1 1 1
8 A SPST     1 1 1
COMMUNICATIONS PORTS
MODBUS TTL
INTRABUS
MODBUS RS-485 slave
RS-485 (MODBUS master/slave, BACnet MS/TP)
CAN
USB
Ethernet (MODBUS TCP, Web Server, BACnet IP)
OTHER STANDARD FEATURES
Clock

Notes
None.

Available options

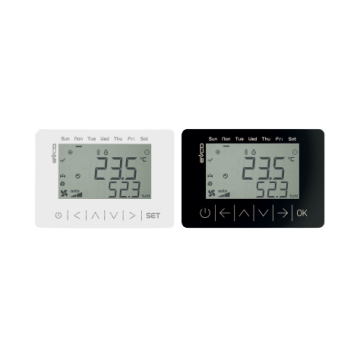

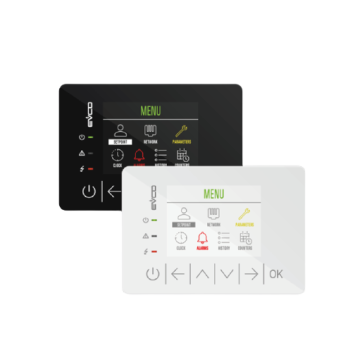

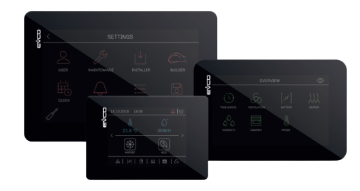

Compatible user interfaces: EPcolor S/M/L, EPJgraph, EPJ LCD, Vgraph.
