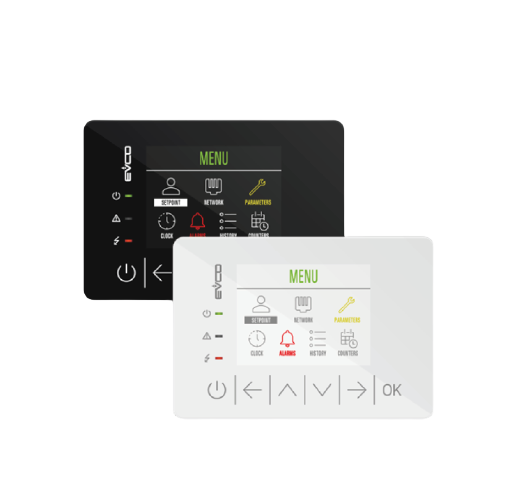

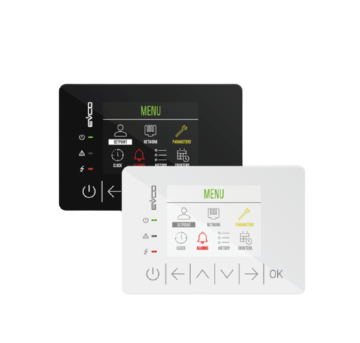

The EPcolor series is an elegant range of programmable remote user interfaces. The interface installed from behind using threaded studs enables it to be placed flush with the panel thus making it fit perfectly with the design of the unit.
The capacitive TFT touch-screen colour graphic display in glass of 3.5 inches (S), 5 inches (M) or 7 inches (L), has 65,000 colours, resolution up to 800x480 pixels and IP65 frontal protection.
The EPcolor series is ideal for setting up user interfaces for applications developed on c-pro 3 programmable controllers which are equipped with a CAN port. The controllers can interact with devices belonging to third parties due to the presence of the MODBUS protocol (configurable both as master and slave) and of up to 2 RS-485 ports.
A model incorporates a temperature sensor, whose readings can be transmitted via BUS.
Highly evolved user interfaces can be set up through the graphic tool GUI-PRO using a wide range of graphics libraries and templates. Moreover, the ability to import backgrounds, load bitmaps and text translation files automatically from a USB flash drive simplify the human-machine interface personalisation process.

FOR DETAILED PRODUCT SPECIFICATIONS PLEASE CHECK THE DOCUMENTS IN "DETAILS" SECTION OR SIMPLY GET IN TOUCH WITH YOUR SALES REPRESENTER!
Please click here for downloading the relevant product brochure

Please click here for downloading the latest Programmable products catalogue

Please click to the related link below for downloading the user manuals and specs or here to go to the UNI-PRO development enviroment.



Technical Features

Remote user interfaces

  EPcolor S EPcolor M EPcolor L
  EPCJ01X4 EPCJ04X4V EPCJ04T4V EPCM00X4 EPCM01X4 EPCL01X4 EPCL00X4
VERSION
In a plastic housing, with built-in user interface
DISPLAY
3.5-inch capacitive TFT touch-screen graphic display in glass
5-inch capacitive TFT touch-screen graphic display in glass
7-inch capacitive TFT touch-screen graphic display in glass
INSTALLATION
Recessed in the panel
Flush with the panel
Wall-mounted
CONNECTIONS
Fixed screw terminal blocks
Plug-in screw terminal blocks
POWER SUPPLY
24 VAC/12... 30 VDC
COMMUNICATIONS PORTS
MODBUS RS-485 slave
RS-485 MODBUS master
RS-485 MODBUS master/slave
CAN
USB
OTHER STANDARD FEATURES
Built-in temperature sensors
Clock
Alarm buzzer

Notes
None.

Available options
None.
