CPRO3 CHILL

CPRO3 CHILL

Check the Price
Please Log in to check the price
c-pro 3 CHILL is a series of fully configurable controllers for running single- and dual-circuit air to water and water to water chillers with up to 3 compressors for each circuit.
The system is able to manage on-off compressors and on-off and modulating fans, with single or independent condensation. It can manage the pump down solenoid valve, "free cooling” and the "weekly programming” function.
Equipped with a wide variety of communications ports, the controllers can be connected with an I/O expansion and with a driver for the management of bipolar stepper electronic expansion valves.

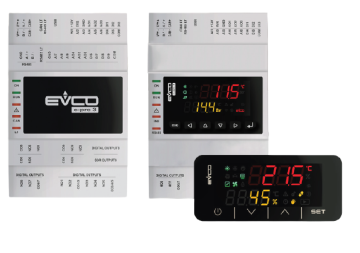

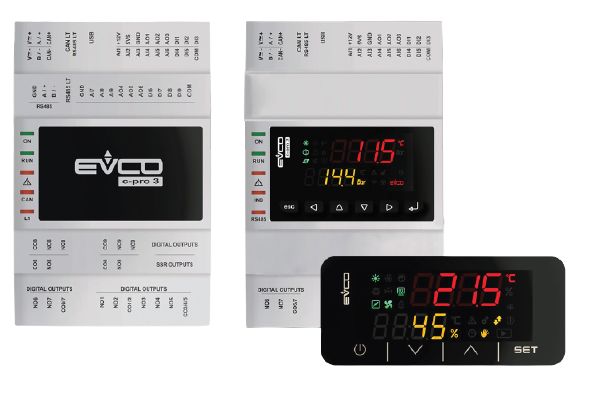

The solution is available in the following hardware formats: - c-pro 3 nano (74x32 mm) with built-in LED display, capacitive touch keys, 25 I/Os, IP65 frontal potection and panel fitting; - c-pro 3 micro (4 DIN modules) in blind version or with built-in LED user interface, up to 33 I/Os and DIN rail installation. Both formats can be connected to the stylish interface EPJ graph, which is supplied based on the specific needs for panel or for wall mounting.

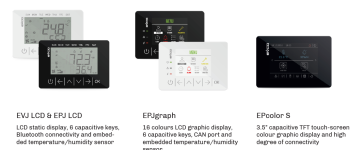

USER INTERFACES AVAILABLE ARE;


MAIN FEATURES



Please click here for downloading the relevant product brochure

Please click here for downloading the latest HVAC catalogue

Please click here for downloading the user manual


Advantages & Main Features

Fully configurable I/Os
Communication with a possible bipolar stepper electronic expansion valves driver (EVDRIVE03) for each circuit
Management of
Management of 3
Pump down valve management
Standard 74 x 32 mm or 4 DIN modules format

Technical Features

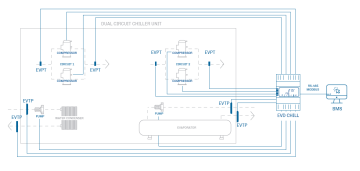

Controllers for single- and dual-circuit chillers with up to 3 compressors each circuit

  c-pro 3 nano CHILL c-pro 3 micro CHILL
  EPN2LXP1CH EPU2BXP1CH EPU2LXP1CH
VERSION
In a plastic housing, blind
In a plastic housing, with built-in user interface
FORMAT
74 x 32 mm
4 DIN modules
DISPLAY
2-line LED display, 6 keys
2-line LED display, 4 capacitive touch keys
INSTALLATION
Panel-mounted
On a DIN rail
CONNECTIONS
Micro-Fit connectors
Removable spring terminal blocks
Plug-in screw terminal blocks
POWER SUPPLY
12 VAC
CONFIGURABLE INPUTS (ANALOGUE OR DIGITAL)
Analogue input (PTC/NTC/Pt 1000) or digital input (dry contact) 5 3 3
Analogue input (NTC/0-5 V ratiometric/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact) 4
Analogue input (PTC/NTC/Pt 1000/0-5 V/0-10 V/0-20 mA/4-20 mA) or digital input (dry contact)   6 6
DIGITAL INPUTS (configurable)
Dry contact 3
24 VAC/DC   7 7
Dry contact for pulse trains up to 2 KHz 2
24 VAC/DC for pulse trains up to 2 KHz   2 2
ANALOGUE OUTPUTS (configurable)
0-10 V   2 2
0-10 V/PWM   2 2
0-10 V/PWM/phase cut 2
0-20 mA/4-20 mA/0-10 V 2 2 2
DIGITAL OUTPUTS electro-mechanical relays; A res. @ 250 VAC (configurable)
3 A SPST 7 7 7
3 A SPDT   2 2
COMMUNICATIONS PORTS
INTRABUS
MODBUS RS-485 slave
RS-485 MODBUS master
CAN
USB
OTHER STANDARD FEATURES
Clock
Alarm buzzer

Notes
None.

Available options

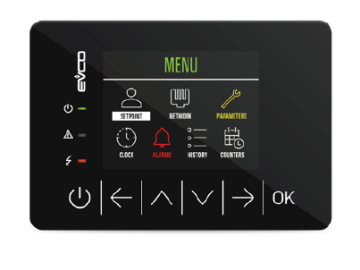

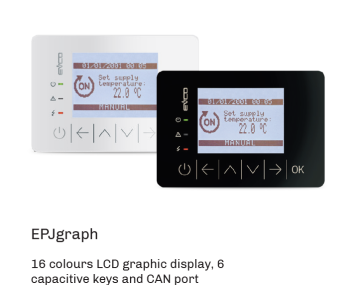

- compatible user interfaces: EPJgraph, Vgraph, Vled 3 INTRABUS (nano), Vled 3 CAN (micro)
- compatible EEV drivers: EVDRIVE03
- compatible I/O expansions: c-pro 3 EXP micro.
